RG switchboards were designed with the flexibility to have both individually mounted main circuit breakers and group-mounted distribution panels, depending on your future needs and current budget. move and/or add Tmax XT and Record Plus molded case circuit breakers in the field with ease. With ratings up to 6000 A, RG switchboards are suitable for a variety of applications from light commercial to industrial.

RG1 Switchboards

RG1 switchboards, with an integrated ReliaGear group-mounted distribution panel, were designed with the flexibility to move and/or add Tmax XT and Record Plus molded case circuit breakers in the field with ease.: With ratings up to 6000 A and rear-aligned sections, RG1 switchboards provide the option for quick installation against a wall with easy access from the front.

Attributes:

• Main lugs up to 6000 A
• Group-mounted main circuit breakers up to 1200 A
• Group-mounted feeder circuit breakers from 15 to 1200 A
• Suitable for distribution or service entrance
• NEMA type 1 or 3R enclosures
• Front accessible connections
• Rear-aligned sections; may be mounted against a wall
• Up to 100 kAIC interruption rating @ 480 V

RG2 Switchboards

RG2 switchboards allow for a variety of individually mounted main circuit breakers and the same group-mounted distribution panels as RG1 switchboards. With ratings up to 6000 A and front or rear-aligned sections, RG2 switchboards are suitable for a variety of applications from light commercial to industrial.

RG5 Switchboards

RG5 switchboards feature individually mounted main and/or feeder circuit breakers. With ratings up to 6000 A, RG5 switchboards are capable of handling the most demanding applications.

Attributes:

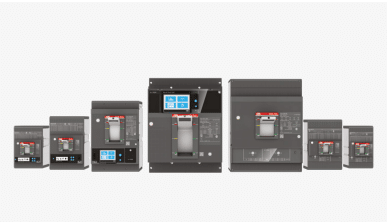

• Individually mounted power circuit breakers up to 6000 A, insulated case circuit breakers up to 4000 A, and molded case circuit breakers up to 1200 A
• Suitable for distribution or service entrance

NEMA Type 1 or 3R Enclosures

Applies to all ReliaGear switchboard types

• Front or rear accessible connections
• Rear or front and rear aligned sections
• Up to 100 kAIC interruption rating @ 480 V

Seismic Compliance Certification

Applies to all ReliaGear switchboard types:

• UL 891
• Qualified to IEEE-693-2018 High Level
• Qualification performed in accordance to IBC- 2018/CBC-2019 and ICC-ES-AC156
• Class 1 (group mounted switchboard sections): Sds = 2.00g, Ip – 1.5, for z/h = 1 , Sds = 2.50g, Ip – 1.5, for z/h = 0
• Class 2 (Individually mounted switchboard sections): Sds = 1.56g, Ip – 1.5, for z/h = 1, Sds = 2.50g, Ip – 1.5, for z/h = 0

Attributes:

• Main lugs up to 6000 A

With ratings up to 6000 A and rear-aligned sections, RG1 switchboards provide the option for quick installation against a wall with easy access from the front.

Sizing & Dimensions

Switchboard Sizing Considerations

The following rules and arrangements must be considered when sizing and dimensioning ReliaGear™ SB switchboards.

Switchboard width and depth will depend on the type, size, feed direction, and the combination of devices required. Section width and depth can be increased in 5-inch increments, up to 60 inches, to accommodate unusual arrangements, large number of conduits, or when an existing footprint needs to be matched. For ease of installation, a consistent section depth is recommended for the entire lineup.

The 90-inch switchboard height is standard but can be reduced down to 78 inches.

Group Mounted

The group mounted sections utilize a panelboard mount arrangement like that used in ReliaGear neXT distribution panelboards. Group mounted circuit breakers can be used as feeders or mains for switchboard sections of 1200 A and below.

Group mounted circuit breakers are typically standard rated for up to 80 percent of the rated amperage for a period of three hours. 100 percent rated circuit breakers are available in Tmax XT4, XT5, and XT7 circuit breakers, with some limitations.

In addition to circuit breakers, surge protection devices (SPD), metering and adaptive protection accessories are available for use in group mounted sections.

Sizing

Group mounted circuit breakers are sized by X space requirements where X = 1.385 inches in height. Smaller frame circuit breakers require less X spacing than larger circuit breakers.

What Can You Expect?

• Same Day Shipping

• 24/7 Real-Time Emergency Support

• A Global Supplying Network

• 1-Year Guaranteed Warranty
