PBX Classified Pushbutton Controls

Globally Certified For Maximum Application Flexibility

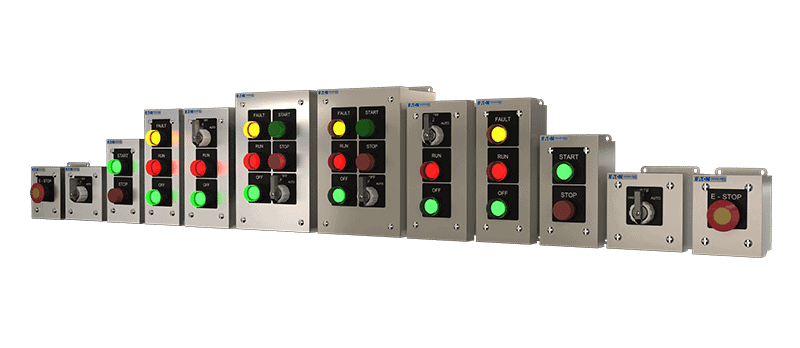

PBX custom assembled push button stations for hazardous locations are available from 1 operator to 6 operator’s controls. You need operators that stand up to the harsh environment and perform with extreme reliability and durability. With over 100 years of success in hazardous equipment manufacturing, Eaton’s CrouseHinds is now introducing EMPX controls stations that are Class 1 Division 2 rated and readily available. The PBX push button stations are the perfect solution to control equipment surface mounted locally or remotely.

Nema Size starters 00 – 2 may take a 50VA CPT if when there is minimal controls.
  • Protects against circulating dust, falling dirt and dripping non-corrosive liquids
  • Wash and phosphate undercoat
  • ANSI 61 gray polyester powder finish Nema 4
  • 316 Stainless Steel Nema 4x
  • Stainless steel enclosure cover and sides of body have a smooth brushed finish
  • Wash and phosphate undercoat
  • ANSI 61 gray polyester powder finish
  • Stainless steel enclosure cover and sides

NEC and CEC: Manufactured in the USA

  • Class I, Division 1 & 2, Groups B, C, D
  • Class II, Division 1 & 2, Groups E, F, G
  • Class III
  • UL 508A listed, Type 12, Type 13, and Type 4X
  • UL file #: E10593
  • UL1203 Standard for Explosionproof and Dust-ignitionproof Electrical Equipment for use in Hazardous (Classified) Locations
  • UL50 Enclosures for Electrical Equipment
  • UL508 Standard for Industrial Control Equipment
  • CSA C22.2 No.94 certified, Type 12, Type 13, and Type 4X
  • Conforms to NEMA standard for Type 12, Type 13, and Type 4X CSA C22.2 No. 25-1966 Enclosures for use in Class II, Groups E, F, G Hazardous Locations
  • CSA C22.2 No. 30-M1986 Explosionproof Enclosures for use in Class I Hazardous Locations
  • CSA C22.2 No. 94-M91 Special Purpose Enclosures Industrial Products
  • CSA C22.2 No. 14-13 Industrial Control Equipment
  • EN 60079-1 / IEC 60079-1
  • EN 60079-31 / IEC 60079-31
  • Ambient temperature range: -50°C to +60°C
