Outdoor-Rated SGX-F Gas-Insulated Switchgear
Type 3R medium-voltage GIS for fast-track data center, utility, industrial, commercial, and infrastructure projects that need compact, reliable power distribution without adding unnecessary building complexity.
Spike Electric provides SGX-F gas-insulated metal-enclosed switchgear for projects where schedule, footprint, reliability, and U.S. medium-voltage standards matter. The SGX-F platform combines sealed gas-insulated primary compartments, vacuum switching technology, modular lineup configurations, and outdoor Type 3R enclosure options for demanding critical power applications.
For project teams facing long market lead times, Spike Electric can support fast-track availability reviews and project-specific quoting for qualified SGX-F configurations. Availability, ratings, listing, arc-resistant construction, seismic qualification, and monitoring options should be confirmed during the quoting process.
Spike Electric provides outdoor-rated SGX-F gas-insulated medium-voltage switchgear for industrial, utility, infrastructure, commercial, and data center projects that require compact equipment, dependable performance, and faster project coordination.
The SGX-F platform is designed for medium-voltage power distribution applications where sealed construction, modular configuration, reduced field work, and long-term reliability are important. Outdoor Type 3R configurations help project teams place medium-voltage GIS where the electrical system needs it, while reducing dependence on separate building scope around the switchgear lineup.
From its Houston-area operations, Spike Electric supports customers with technical coordination, documentation review, quote support, and project-specific application guidance for SGX-F gas-insulated switchgear.
- Product, Safety & Specifications
- SGX-F Ratings Snapshot
- Outdoor SGX-F GIS vs. PDC / E-House Approach
- SpikeGrid IQ Digital Monitoring
- Safety, Installation & Compliance Notes
The SGX-F gas-insulated metal-enclosed switchgear platform is built for critical medium-voltage power distribution where compact design, sealed primary compartments, outdoor-rated enclosure options, and dependable electrical performance are required.

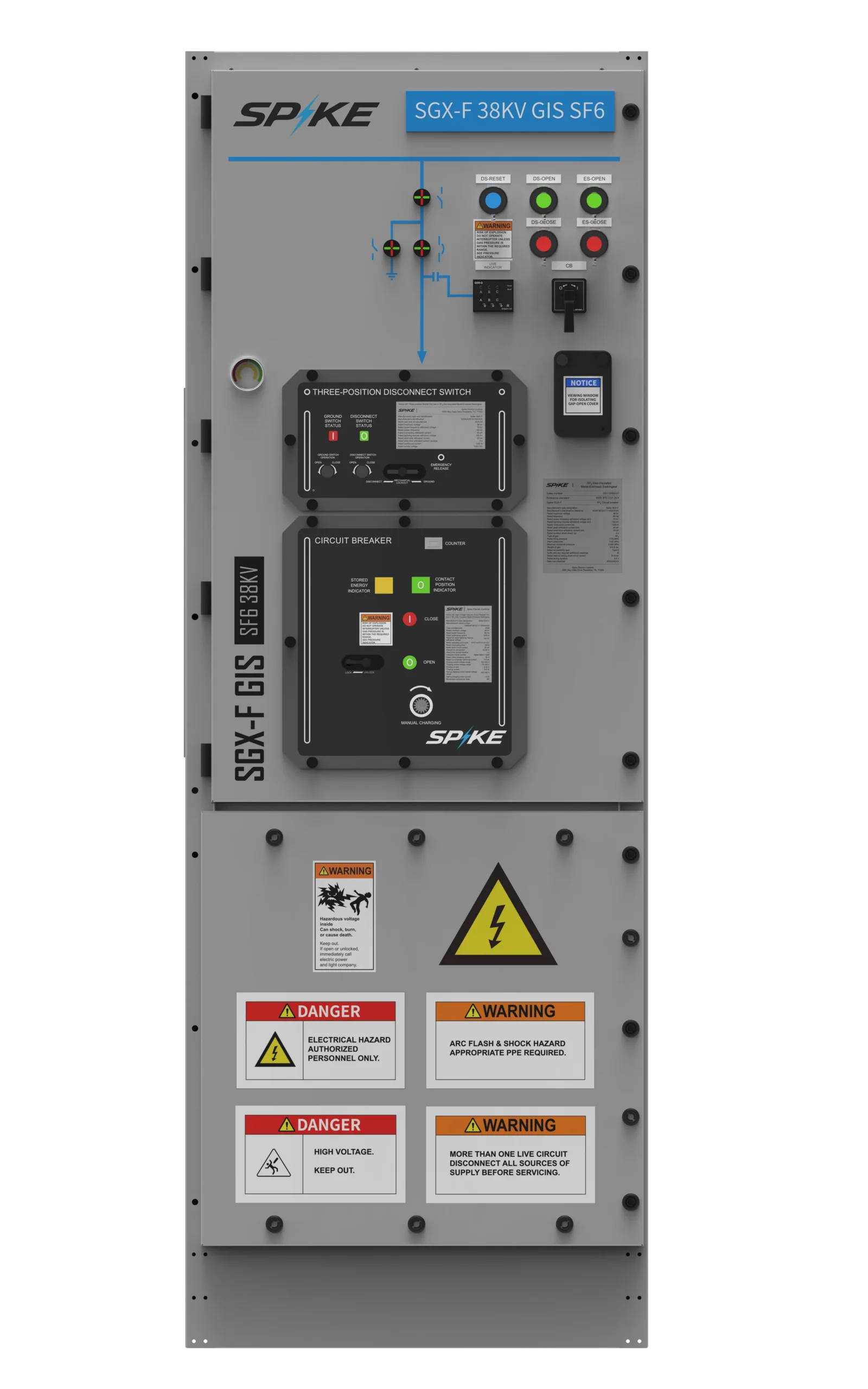

- SGX-F gas-insulated metal-enclosed switchgear platform
- SF6 & SF6-Free Options

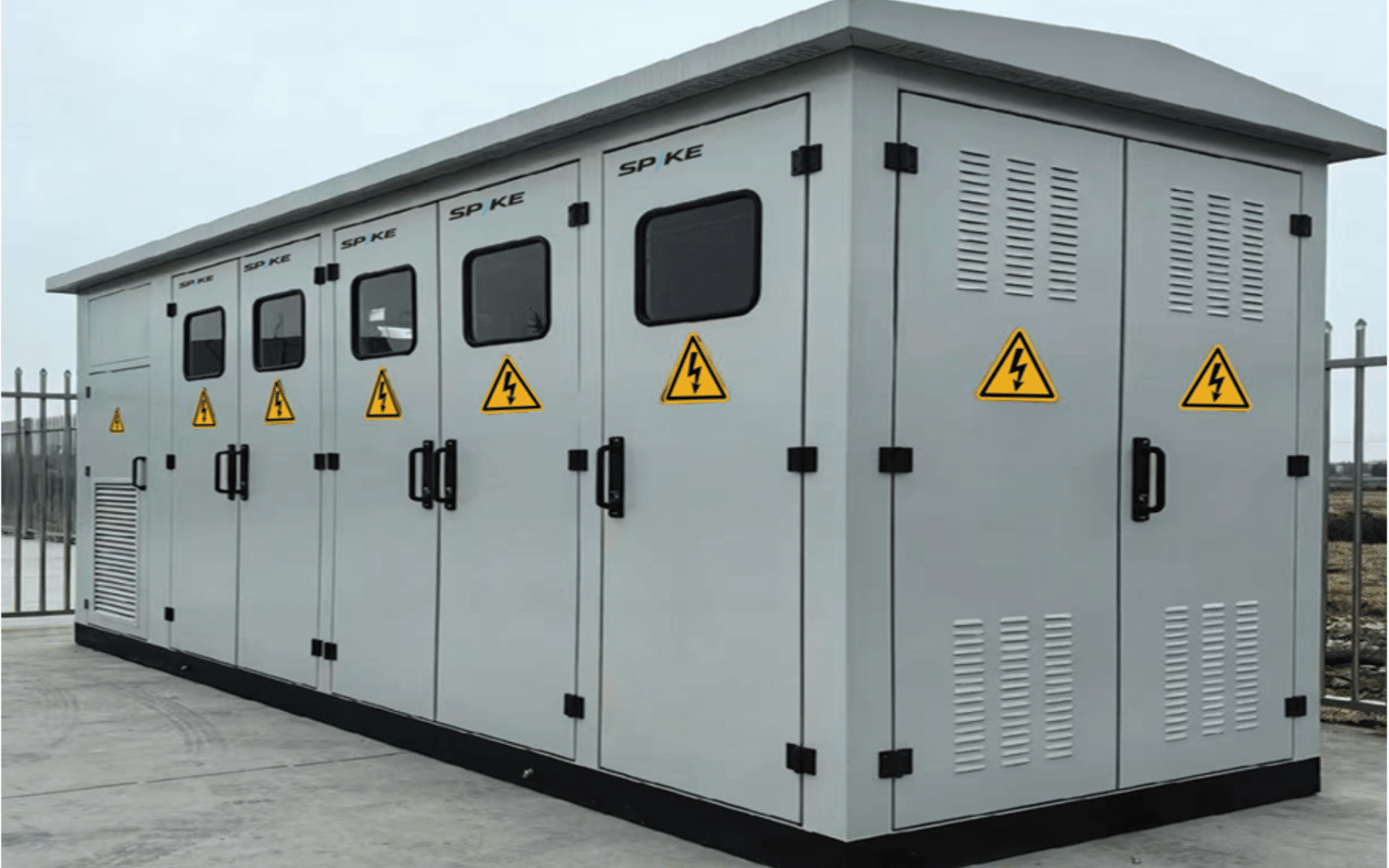

- Outdoor Type 3R enclosure option for outdoor medium-voltage applications
- Voltage classes: 15 kV, 27 kV, and 38 kV, with platform availability up to 40.5 kV class
- Continuous current ratings from 600 A to 5000 A depending on lineup bus rating and section configuration
- Short-time withstand current ratings of 25 kA, 31.5 kA, and 40 kA, with 50 kA available for 15 kV GIS configurations
- 60 Hz system frequency
- Vacuum switching technology
- Modular feeder, main, tie, metering, and protection configurations
- Single-bus and double-bus lineup options
- Factory-assembled and factory-tested sections
- Plug-in primary connections to help reduce field assembly
| Category | |
| Voltage classes | 15 kV, 27 kV, and 38 kV; platform availability up to 40.5 kV class |
| Continuous current | 600-5000 A depending on lineup bus rating and section configuration |
| Short-time withstand | 25 kA, 31.5 kA, and 40 kA; 50 kA available for 15 kV GIS configurations |
| Frequency | 60 Hz |
| Switching technology | Vacuum switching technology |
| Gas tank enclosure | IP65 |
| Gas Options | SF6 & SF6-Free |

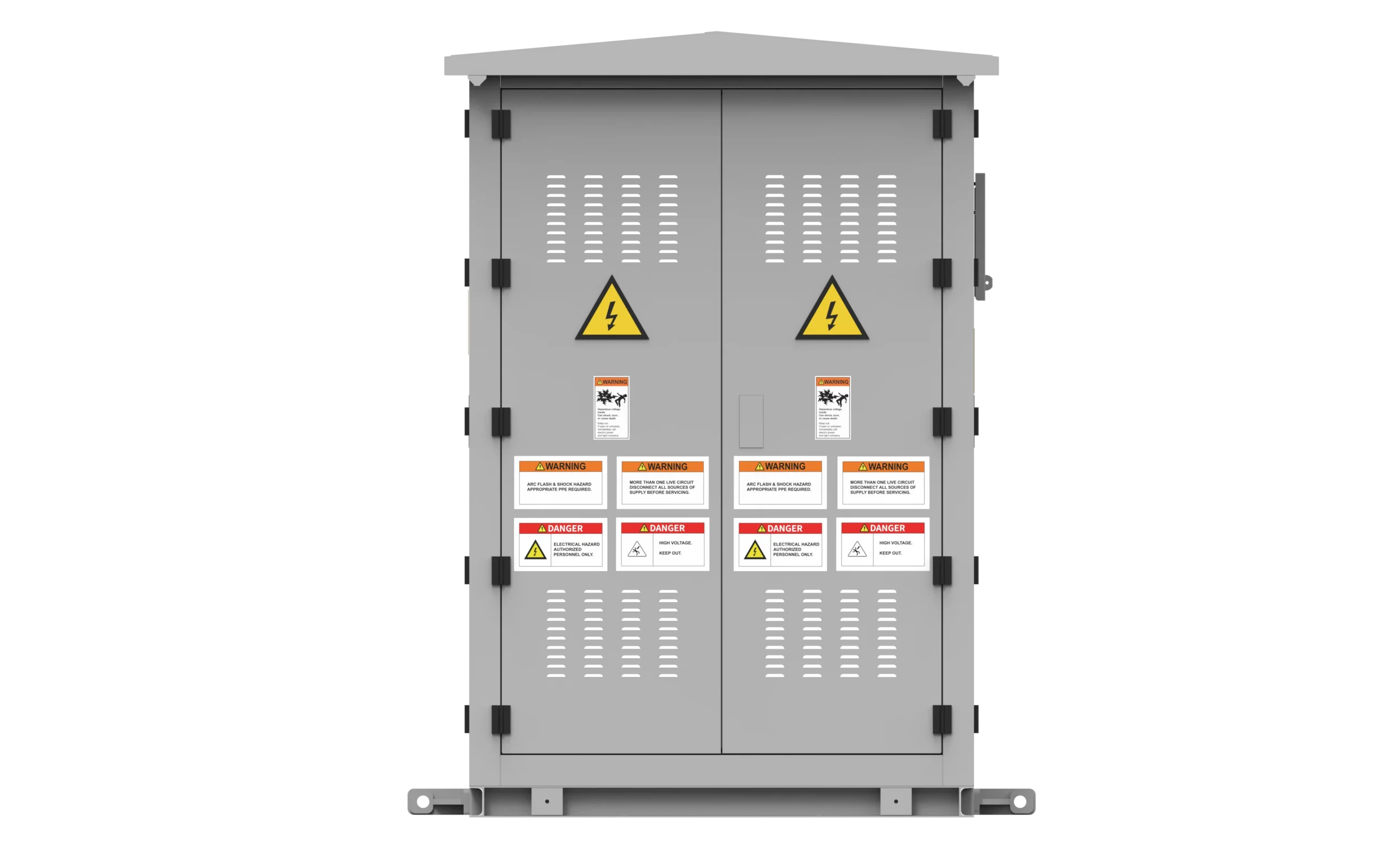

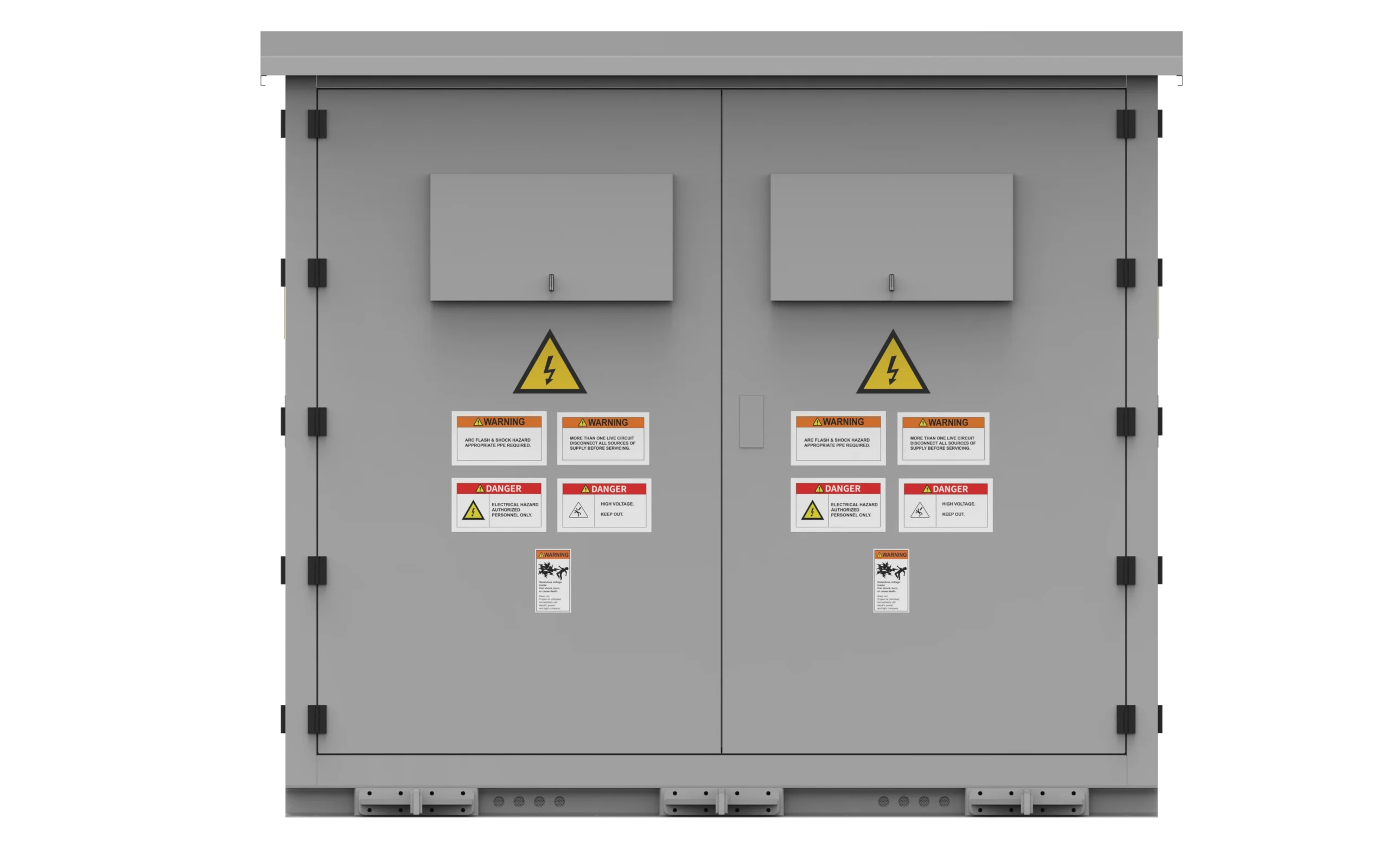

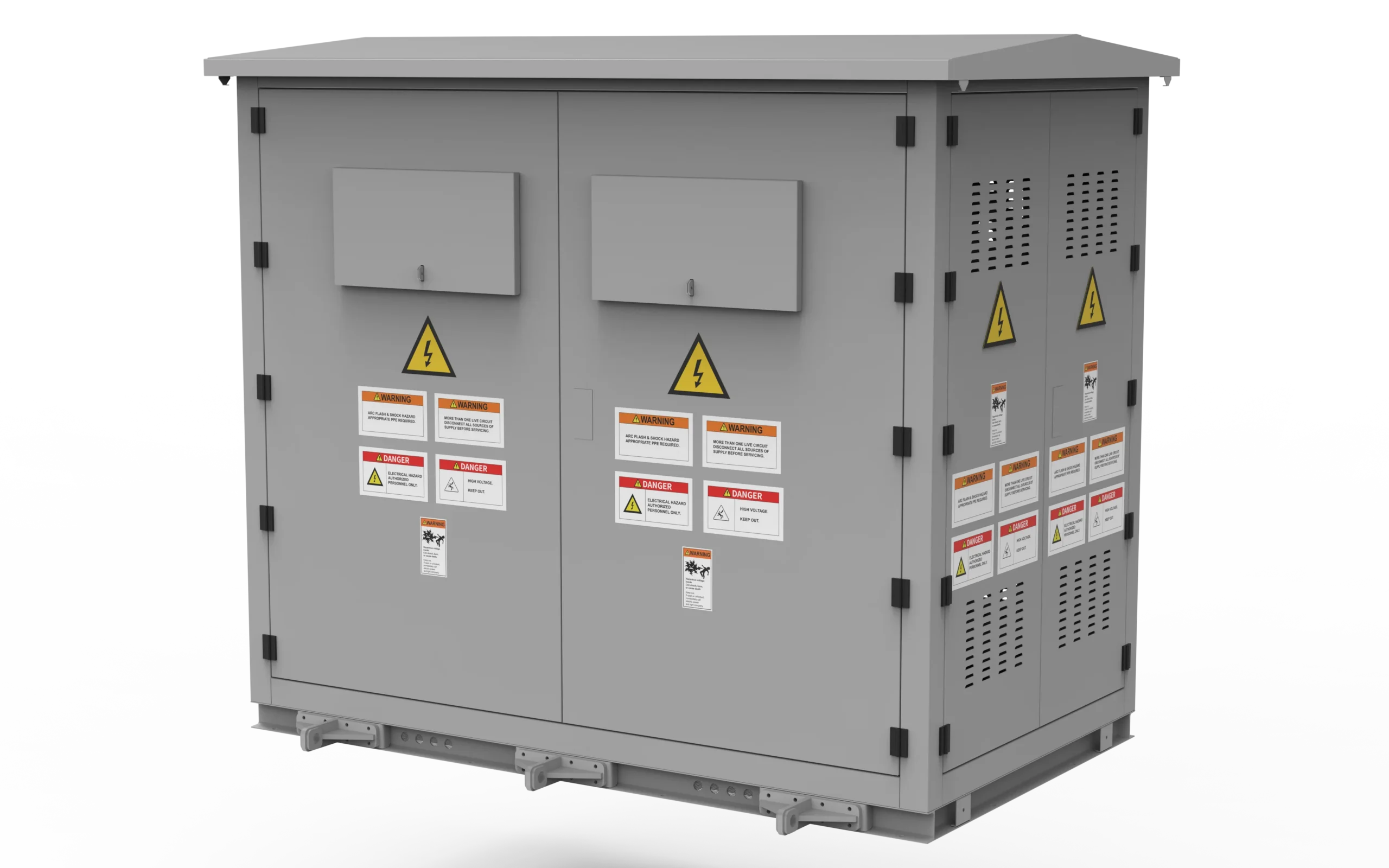

| Outdoor enclosure | Type 3R option |
| Standards positioning | IEEE C37.20.9 gas-insulated switchgear alignment |
| Listing option | Optional ETL NRTL listing on qualified configurations |
| Arc-resistant option | Optional IEEE C37.20.7 Type 2B on qualified configurations |
| Seismic option | Optional IEEE 693 seismic qualification on qualified configurations |
| Monitoring options | Gas, environmental, condition, asset health, alarm, and dashboard monitoring options |
|
Outdoor SGX-F GIS |
PDC / E-House Approach |
|
Outdoor Type 3R switchgear lineup option |
Separate building or enclosure scope around switchgear |
|
Compact GIS footprint |
Larger installed footprint and more site coordination |
|
Factory-built sections with modular lineup design |
More building, electrical, mechanical, and civil coordination |
|
Can reduce building-related HVAC, fire, lighting, and access requirements depending on project design |
HVAC, fire, lighting, access, and building envelope are typically part of the scope |
|
Designed for fast-track medium-voltage project execution |
More trades and construction sequencing can affect schedule |
|
Spike Electric supports ratings, documentation, and quote review from Houston-area operations |
Procurement may require more coordination across building and electrical scopes |
Turn medium-voltage switchgear into a monitored critical power asset.
SpikeGrid IQ digital monitoring options help owners move from reactive maintenance to condition-based maintenance. By integrating real-time gas, environmental, dielectric, thermal, and asset-health monitoring, SGX-F can provide better visibility into the physical and operational condition of critical medium-voltage assets.
| Monitoring Area | |
| Gas health monitoring | Monitor SF6 density, pressure, dew point, and temperature to help identify gas degradation, low density, moisture ingress, and condensation risk. |
| Environmental monitoring | Track ambient temperature, humidity, dust, and local switchgear conditions that can contribute to insulation stress, tracking, corrosion, or accelerated aging. |
| Condition monitoring | Support online monitoring for partial discharge, thermal anomalies, insulation deterioration, mechanical defects, and developing equipment issues. |
| Asset intelligence | Use alarms, dashboards, trend analysis, Asset Health Index views, and maintenance recommendations to support faster decisions and planned maintenance. |
| System integration | Support local alarms, dashboard visibility, secure access, Modbus RTU, Modbus TCP, REST API, fiber / LAN / cellular connectivity, and IEC 61850 communication options where specified. |
Digital Monitoring Benefits
- 24/7 visibility into switchgear health and site conditions
- Early detection of SF6 leaks, environmental risk, partial discharge activity, and thermal anomalies
- Trend analysis for gas, environmental, and condition indicators
- Asset Health Index views to simplify maintenance prioritization
- Reduced unplanned outages through predictive maintenance planning
- Better maintenance decisions for data center, utility, industrial, and infrastructure operators
Personnel installing, operating, inspecting, testing, or maintaining this equipment must be fully qualified and must follow all applicable local, regional, industrial, governmental, OSHA, owner, and project-specific safety procedures.
Safety instructions, equipment-specific manuals, ratings, nameplates, project drawings, listing limitations, and installation requirements should be reviewed before installation, operation, maintenance, testing, or energization.
Final suitability for each project depends on the quoted SGX-F configuration, applicable standards, environmental conditions, site design, owner requirements, and authority having jurisdiction.
Need SGX-F Gas-Insulated Medium Voltage Switchgear Faster?
Spike helps industrial, utility, infrastructure, and commercial project teams source name-brand medium voltage electrical gear with faster turnaround and project-specific support.
Fast-Track Data Center & Utility Projects
SGX-F is built for project teams that cannot afford schedule drift caused by long medium-voltage switchgear lead times. Spike Electric supports fast-track SGX-F quoting, engineering review, documentation coordination, and availability planning for qualified configurations.
For qualified project configurations, request a current availability review for accelerated target lead times. Final lead time depends on the required ratings, lineup configuration, listing requirements, arc-resistant requirements, monitoring scope, documentation needs, and approved submittal timing.
Best-Fit Applications
- Data centers, hyperscale campuses, and colocation facilities
- Utility substations and distribution infrastructure
- Industrial plant expansions and manufacturing facilities
- Energy, process, and petrochemical facilities
- Renewable energy and interconnection projects
- Water and wastewater infrastructure
- Large commercial electrical systems
- Projects requiring compact outdoor medium-voltage switchgear layouts
Why Outdoor-Rated GIS Is Different
Outdoor-rated gas-insulated switchgear allows project teams to evaluate a complete outdoor medium-voltage lineup instead of building around the switchgear first. For many projects, this can reduce building-related coordination such as HVAC, fire protection, access, lighting, foundation interfaces, and construction sequencing. Final requirements always depend on site design, owner standards, and the authority having jurisdiction.
The SGX-F platform combines compact GIS construction, sealed primary compartments, vacuum switching technology, modular lineup design, Type 3R outdoor enclosure options, and Spike Electric project support for demanding medium-voltage applications.
Factory-Built, Sealed Compartment Design
SGX-F uses factory-assembled, compartmentalized gas-insulated construction to support reliable medium-voltage distribution for data centers, utilities, industrial facilities, and critical infrastructure projects.
Sealed primary compartments help reduce exposure to environmental contamination, while modular construction supports project-specific feeder, main, tie, metering, and protection arrangements.
- Factory-assembled and factory-tested construction
- SF6 & SF6-Free Options
- Simplified installation with reduced field work
- Plug-in primary connections to help reduce field assembly
- Modular lineup design for flexible configurations
- Sealed primary compartments for reliable operation
- Reduced maintenance requirements compared with more exposed switchgear designs
- Straightforward startup, inspection, and site verification support
Why Choose SGX-F Gas-Insulated Switchgear?
Gas-insulated switchgear is often selected for projects where space, reliability, environmental protection, and medium-voltage performance are critical. The SGX-F sealed gas-insulated design helps reduce exposure of primary components to outside contaminants while supporting compact layouts and dependable power distribution.
For data centers, utility systems, industrial plants, infrastructure projects, and large commercial facilities, SGX-F gives project teams a compact outdoor-rated GIS option with modular configurations, American standards positioning, optional monitoring, and Spike Electric support throughout the quoting and project coordination process.
Built for Demanding Medium-Voltage Applications
- Outdoor medium-voltage installations
- Utility and infrastructure projects
- Data center and mission-critical power distribution
- Industrial power distribution
- Manufacturing facilities
- Energy and process facilities
- Commercial electrical systems
- Projects requiring compact switchgear layouts
- Facilities with demanding reliability requirements
Request a Gas-Insulated Switchgear Quote
If your project requires outdoor-rated SGX-F gas-insulated medium-voltage switchgear, Spike Electric can help review the application, confirm the required ratings, and provide quote support based on your project requirements.
To help speed up the quoting process, provide available project details such as voltage rating, one-line diagram, continuous current, short-circuit rating, bus configuration, enclosure requirements, incoming and outgoing cable details, protection requirements, listing requirements, arc-resistant requirements, seismic requirements, monitoring requirements, documentation needs, installation location, and target delivery date.
Spike Electric supports industrial, utility, infrastructure, commercial, and data center customers that need dependable SGX-F gas-insulated switchgear and fast-track medium-voltage power distribution support.
American Standards & U.S. Project Support
SGX-F is engineered to support the expectations of the U.S. medium-voltage market by aligning with recognized IEEE/ANSI standards and providing project-specific engineering support throughout the specification process.
Spike Electric helps customers ensure the complete switchgear assembly is appropriate for the project’s technical, regulatory, and performance requirements before equipment is released for manufacturing.
- IEEE C37.20.9 gas-insulated switchgear alignment
- IEEE / ANSI-based medium-voltage rating language
- Optional ETL NRTL listing on qualified configurations when specified
- Optional IEEE C37.20.7 Type 2B arc-resistant construction on qualified configurations when specified
- Optional IEEE 693 seismic qualification on qualified configurations when specified
- SF6 & SF6-Free Options Available
- U.S. project documentation and engineering support from Spike Electric
Frequently Asked Questions About SGX-F Gas-Insulated Switchgear
What is SGX-F gas-insulated switchgear?
SGX-F is Spike Electric's gas-insulated metal-enclosed medium-voltage switchgear platform for compact, reliable power distribution in data center, utility, industrial, commercial, and infrastructure applications.
Is SGX-F available for outdoor installation?
Yes. SGX-F can be supplied with outdoor Type 3R enclosure options for outdoor medium-voltage applications. Final outdoor configuration should be confirmed during the quoting and engineering review process.
What voltage ratings are available?
SGX-F supports 15 kV, 27 kV, and 38 kV voltage classes, with platform availability up to 40.5 kV class depending on project configuration.
What current and short-circuit ratings are available?
SGX-F supports continuous current ratings from 600 A to 5000 A depending on lineup bus rating and section configuration. Short-time withstand ratings include 25 kA, 31.5 kA, and 40 kA, with 50 kA available for 15 kV GIS configurations. Current and short-circuit ratings are consistent across both SF6 and SF6-free gas options, so gas selection can be made independent of electrical performance requirements.
Is SGX-F aligned with IEEE C37.20.9?
SGX-F should be positioned around IEEE C37.20.9 gas-insulated switchgear requirements, with final configuration, ratings, documentation, and optional listing reviewed project by project.
Is an ETL NRTL listing available?
Optional ETL NRTL listing is available on qualified configurations when specified. Listing requirements should be identified early in the quoting process.
Is Type 2B arc-resistant construction available?
Optional IEEE C37.20.7 Type 2B arc-resistant construction is available on qualified configurations when specified. Arc-resistant requirements should be reviewed against the exact lineup configuration.
Can SGX-F include seismic qualification?
Optional IEEE 693 seismic qualification is available on qualified configurations when specified. The required seismic level and installation conditions should be reviewed before quote release.
Can outdoor SGX-F reduce the need for a PDC building or E-house?
In many projects, outdoor-rated GIS can reduce building-related scope and coordination by allowing the switchgear lineup to be evaluated as an outdoor medium-voltage solution. Final site requirements depend on the owner specification, project design, and authority having jurisdiction.
How fast can Spike Electric support SGX-F projects?
Spike Electric can support fast-track SGX-F availability reviews. Qualified configurations may be available on accelerated timelines, subject to ratings, configuration, listing, documentation, and submittal timing.
Can SGX-F include digital monitoring?
Yes. SpikeGrid IQ digital monitoring options can support gas health monitoring, environmental monitoring, partial discharge monitoring, thermal monitoring, asset health indexing, dashboards, alarms, and predictive maintenance planning.
What information is needed for a quote?
Provide the one-line diagram, voltage, continuous current, short-circuit rating, bus configuration, number of sections, incoming and outgoing cable details, enclosure requirements, protection requirements, listing requirements, arc-resistant requirements, seismic requirements, monitoring requirements, documentation requirements, installation location, and target delivery date.
Can Spike Electric support U.S. project standards and documentation?
Can Spike Electric support U.S. project standards and documentation?
