NEMA 1 / 3R / 4 / 4X & Custom Enclosures
Standard and Custom Electrical Enclosures for Any Environment.
Spike Electric designs and fabricates electrical enclosures that protect equipment indoors or outdoors, in ordinary or hazardous (classified) locations. Choose from more than 100 standard sizes or a fully custom-built enclosure — across a wide range of NEMA ratings and materials — with fast lead times and in-house drilling, tapping, machining, and finishing.
PowerClad supports both new construction and the replacement of older air-break, minimum-oil, or SF6 switchgear — providing higher insulation levels in less space and reducing overall switchgear footprint for significant space savings.
Thoroughly Tested, Flexible, and Built for Performance
At Spike Electric, reliability is engineered into every component. PowerClad Metal-Clad Switchgear undergoes extensive quality-assurance testing to verify performance across all critical conditions, and is built with adaptability in mind so customers can choose the features, accessories, and configurations that best suit their application.
Testing capabilities include:
- Dielectric testing
- Power-frequency withstand testing
- Mechanical endurance and functionality
- Optional factory witness testing upon request
Optional accessories and enhancements:
- Silver or tin-plated bus options
- Insulated bus with protective boots over joints
- 80 kA momentary bus rating
- Enhanced arc-safety features
- Tamper-resistant hardware
- Additional control switches and monitoring components
Need help selecting the right Nema Enclosure?
Our team can help you choose the right configuration for your facility or project.
Configurations
Select a configuration for its options and ratings. Both configurations share the certifications, applications, fabrication, and support in the shared sections below. Use rating and material selectors to narrow to the right enclosure.
Optimized-design enclosures with fast production lead times, available in more than 100 standard sizes — many with optional conduit and device drilling and tapping.
- NEMA ratings: Type 3, 3R, 4, 4X, 7BCD, and 9EFG (hazardous and non-hazardous locations)
- Locations: Class I, II, and III hazardous areas, plus ordinary indoor/outdoor use

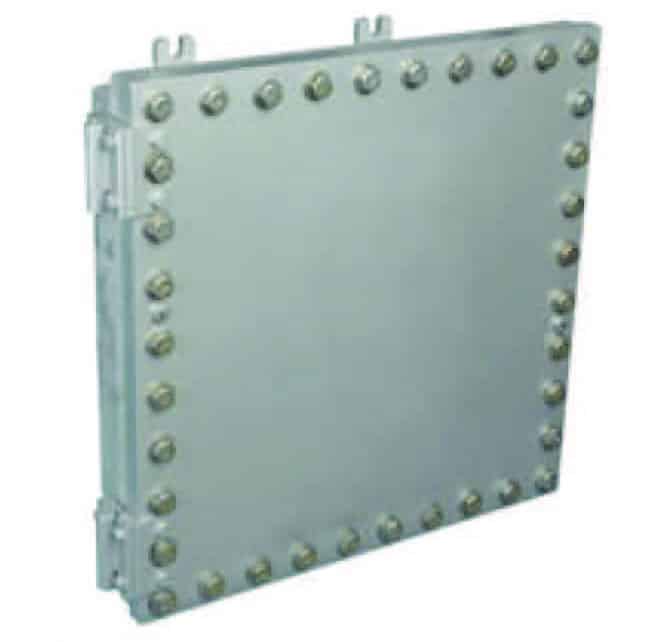

- Product lines: ECP Explosion-Proof Enclosures, EJB Explosion-Proof Junction Boxes, and Ex-Cell stainless-steel & painted-steel enclosures
Download Catalogs: EJB Series Enclosures, ECP Series Enclosures, Ex-Cell Stainless Steel and Painted Steel Enclosures
When a standard model won't fit the equipment or environment, Spike designs and fabricates a custom enclosure to your exact requirements — from prototype through production.
- NEMA ratings: Any rating, NEMA 1 through NEMA 13
- Materials: Steel, stainless steel, aluminum, polycarbonate, fiberglass, and ABS
- Styles: Rackmounts, U- and L-shaped enclosures, consoles, and fully custom designs
- Configuration options: Single- or double-door access, mounting type, windows or vents, dead front, padlock provisions, and integrated hardware (fasteners, brackets, hinges)
- In-house finishes: Powder coat, direct digital printing, grained finish, and permanent marking
- Built for: High impact, hot and cold environments, UV and corrosion resistance, sub-zero zones; applications include heating/cooling systems, Power-over-Ethernet, and solar-powered installations
- What to expect: Same-day shipping on stock items, 24/7 support, global supply network, 1-year warranty
Built In-House. Finished to Spec
Spike fabricates and finishes enclosures in-house — including CNC machining, conduit and device drilling and tapping, and finishing (powder coat, digital printing, grained finish, permanent marking). That control means precise fit, custom hole patterns and cutouts, and fast, dependable lead times.
NEC, CEC & CSA
- Class I, Division 1 & 2, Groups B, C, D
- Class I, Zones 1 & 2
- Class II, Division 1 & 2, Groups E, F, G
- Class III
- cUL to CSA C22.2 No. 30 and No. 25
- NEMA Type 3, 3R, 4, 7BCD, 9EFG; Type 4X (with 4X option)
IECEx / ATEX / UL / IEC
- IECEx: Ex db IIB+H2 Gb; Ex tb IIIC Db IP66; −20°C ≤ Ta ≤ +60°C (IECEx ETL 13.0022U / 13.0040U)
- ATEX: II 2 G D Ex db IIB+H2 Gb; Ex tb IIIC Db IP66 (ITS13ATEX17813U; ITS08ATEX15797U)
- UL: UL 1203
- IEC: EN 60079-0 and EN 60079-1
- Environmental: enclosure Type 3, 3R, 4, 4X, 7BCD, 9EFG
- As a junction or pull box
- Enclosures for splices and branch-circuit taps
- Housing terminal blocks, relays, and other electrical devices
- Indoor or outdoor use in damp, wet, dusty, corrosive, or hazardous locations
- Heavy rain, water, spray, moisture, and humidity — offshore drilling, cooling towers, coal handling, and wastewater treatment
- Areas hazardous due to hydrogen or equivalent gases and vapors — process industries and gas plants
Built In-House. Finished to Spec.
Spike fabricates and finishes enclosures in-house — including CNC machining, conduit and device drilling and tapping, and finishing (powder coat, digital printing, grained finish, permanent marking). That control means precise fit, custom hole patterns and cutouts, and fast, dependable lead times.
Why Choose Spike Electric
Spike Electric delivers high-quality, American-manufactured enclosures quickly, backed by responsive customer service:
- Two-week turnarounds (or faster) on most orders
- High-quality manufacturing and materials
- A manufacturing partner for years to come
- 1-year warranty
For your operation, that means reduced downtime, less overtime, and greater operational efficiency.
