EMN Manual Push Button Starters for IEC Applications

Applications:

  • Used on drilling rigs for mud agitators and shakers where flammable or explosive gases are present
  • Used for fans and blowers, pumps, compressors and conveyors

Safe:

Lockout/tagout option allows for starter to be locked in
“OFF” position

Versatile installation:

  • Detachable mounting hardware
  • Mounting footprint with multiple options for field flexibility

Durable, easy to use:

  • Redesigned buttons allow for ease of use with glove
  • Enclosure designed to protect buttons from damage
  • Class I, Divisions 1 & 2, Groups C, D
  • Class I, Zone 1, Group IIB
  • Class II, Division 1 & 2, Groups E, F, G
  • Class III
  • UL1203; cUL C22.2 No. 30

Electrical Ratings:

  • IEC Cutler-Hammer Type XTPB manual starter
  • 1 to 20 HP
  • 2 pole, single phase AC up to 230 VAC
  • 3 pole, three phase AC up to 600 VAC
  • #18 – #10 wire size range

Environmental Ratings:

  • NEMA 3, 4, 7 (C, D) and 9 (E, F, G)
  • Protected from hose-directed water
  • NEMA 4X rated (when ordered with epoxy powder coat and gasket options)

Materials:

  • Enclosure: copper-free aluminum
  • Shaft, bearing and bolts: stainless steel
  • O-ring gasket: Buna-N (optional)

Standard Materials:

  • Optional gasket protects from mud and hose directed water

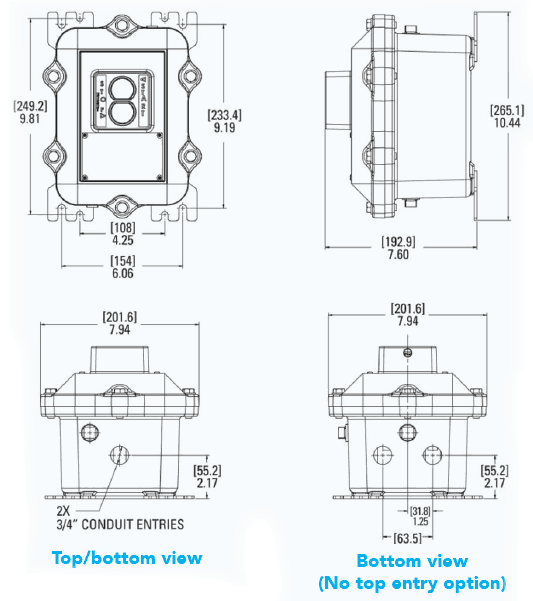

  • Option for no top entries provides additional ingress protection
Catalog # (without option): Catalog # (with option):
EMN 26 WP16 S752 M15
EMN 26 WP25 S752 M15
EMN 26 WP40 S752 M15
EMN 26 WP63 S752 M15
EMN 26 W1 S752 M15
EMN 26 W1P6 S752 M15
EMN 26 W2P5 S752 M15
EMN 26 W4 S752 M15
EMN 26 W6P3 S752 M15
EMN 26 W10 S752 M15
EMN 26 W12 S752 M15
EMN 26 W16 S752 M15
EMN 26 W20 S752 M15
EMN 26 W25 S752 M15
EMN 26 WP16 S753 M15
EMN 26 WP25 S753 M15
EMN 26 WP40 S753 M15
EMN 26 WP63 S753 M15
EMN 26 W1 S753 M15
EMN 26 W1P6 S753 M15
EMN 26 W2P5 S753 M15
EMN 26 W4 S753 M15
EMN 26 W6P3 S753 M15
EMN 26 W10 S753 M15
EMN 26 W12 S753 M15
EMN 26 W16 S753 M15
EMN 26 W20 S753 M15
EMN 26 W25 S753 M15
EMN 26 WP16 S198V M15
EMN 26 WP25 S198V M15
EMN 26 WP40 S198V M15
EMN 26 WP63 S198V M15
EMN 26 W1 S198V M15
EMN 26 W1P6 S198V M15
EMN 26 W2P5 S198V M15
EMN 26 W4 S198V M15
EMN 26 W6P3 S198V M15
EMN 26 W10 S198V M15
EMN 26 W12 S198V M15
EMN 26 W16 S198V M15
EMN 26 W20 S198V M15
EMN 26 W25 S198V M15
EMN 26 WP16 NTE M15
EMN 26 WP25 NTE M15
EMN 26 WP40 NTE M15
EMN 26 WP63 NTE M15
EMN 26 W1 NTE M15
EMN 26 W1P6 NTE M15
EMN 26 W2P5 NTE M15
EMN 26 W4 NTE M15
EMN 26 W6P3 NTE M15
EMN 26 W10 NTE M15
EMN 26 W12 NTE M15
EMN 26 W16 NTE M15
EMN 26 W20 NTE M15
EMN 26 W25 NTE M15
EMN 26 WP16 GSK M15
EMN 26 WP25 GSK M15
EMN 26 WP40 GSK M15
EMN 26 WP63 GSK M15
EMN 26 W1 GSK M15
EMN 26 W1P6 GSK M15
EMN 26 W2P5 GSK M15
EMN 26 W4 GSK M15
EMN 26 W6P3 GSK M15
EMN 26 W10 GSK M15
EMN 26 W12 GSK M15
EMN 26 W16 GSK M15
EMN 26 W20 GSK M15
EMN 26 W25 GSK M15
EMN 26 WP16 M15
EMN 26 WP25 M15
EMN 26 WP40 M15
EMN 26 WP63 M15
EMN 26 W1 M15
EMN 26 W1P6 M15
EMN 26 W2P5 M15
EMN 26 W4 M15
EMN 26 W6P3 M15
EMN 26 W10 M15
EMN 26 W12 M15
EMN 26 W16 M15
EMN 26 W20 M15
EMN 26 W25 M15
EMN 26 WP16 M15
EMN 26 WP25 M15
EMN 26 WP40 M15
EMN 26 WP63 M15
EMN 26 W1 M15
EMN 26 W1P6 M15
EMN 26 W2P5 M15
EMN 26 W4 M15
EMN 26 W6P3 M15
EMN 26 W10 M15
EMN 26 W12 M15
EMN 26 W16 M15
EMN 26 W20 M15
EMN 26 W25 M15
EMN 26 WP16 M15
EMN 26 WP25 M15
EMN 26 WP40 M15
EMN 26 WP63 M15
EMN 26 W1 M15
EMN 26 W1P6 M15
EMN 26 W2P5 M15
EMN 26 W4 M15
EMN 26 W6P3 M15
EMN 26 W10 M15
EMN 26 W12 M15
EMN 26 W16 M15
EMN 26 W20 M15
EMN 26 W25 M15
EMN 26 WP16 M15
EMN 26 WP25 M15
EMN 26 WP40 M15
EMN 26 WP63 M15
EMN 26 W1 M15
EMN 26 W1P6 M15
EMN 26 W2P5 M15
EMN 26 W4 M15
EMN 26 W6P3 M15
EMN 26 W10 M15
EMN 26 W12 M15
EMN 26 W16 M15
EMN 26 W20 M15
EMN 26 W25 M15
EMN 26 WP16 M15
EMN 26 WP25 M15
EMN 26 WP40 M15
EMN 26 WP63 M15
EMN 26 W1 M15
EMN 26 W1P6 M15
EMN 26 W2P5 M15
EMN 26 W4 M15
EMN 26 W6P3 M15
EMN 26 W10 M15
EMN 26 W12 M15
EMN 26 W16 M15
EMN 26 W20 M15
EMN 26 W25 M15
