Stainless Steel Panelboards – NEMA 4x

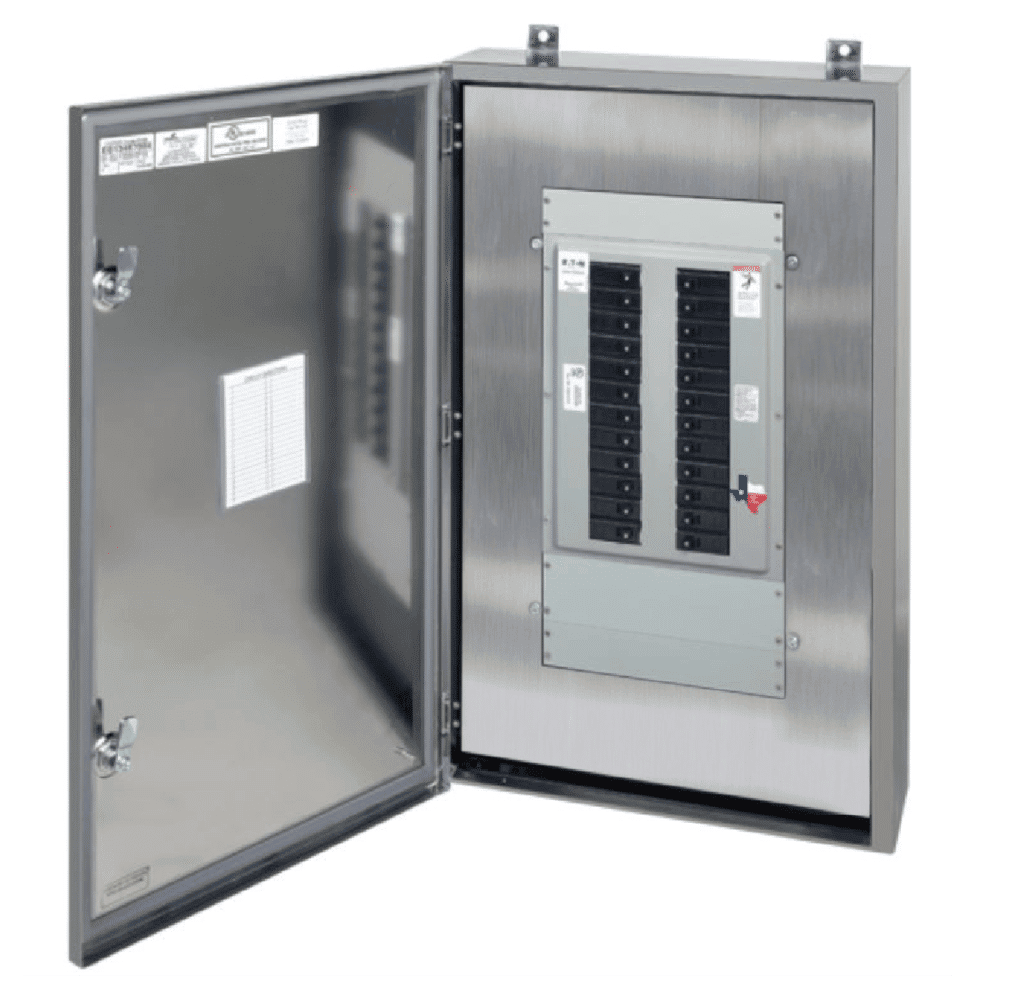

Stainless Steel Panelboards S4XPB & S4XPBH

Eaton Crouse-Hinds Series by Spike Electric

Description

We are pleased to present Spike Electric Control’s stainless steel panelboards. They are used for lighting and power distribution. More specifically, they withstand harsh environments and industrial locations.

Made of stainless steel, these panel boards shine in wash-down or corrosive areas. You can use Spike’s external breaker handles (S4XPBH) or dead front swing panel (S4XPB). Regardless of your choice, expect a high degree of quality, safety and protection with every panelboard Spike produces.

Contact us for a custom quote!

  • Eaton Pow-R-Line and PRL2 panel boards
  • 12-24 circuit with main lug or main circuit breaker
  • One or three phase systems
  • 100, 225, 400 and 600 amp bus
  • round bar and isolated neutral
  • 10kA interrupting rating
  • 316 Stainless steel enclosure
  • Standard Features Series
  • Breather/drain
  • Top and/or bottom feed aluminum gland plates(s)

Prefer to Watch a Video?

    S4XPB & S4XPBH are Spike’s recommended stainless steel panelboards.

    Stainless Steel Panelboard Uses

    Stainless steel panelboards are mainly used in damp areas or corrosive situations. However, they are also useful for:

    • Housing thermal-magnetic circuit breakers
      • In this situation, they first provide thermal time delay overload protection. Second, they offer protection from short circuits and circuit disconnects.
    • Circuit protection and branch power distribution
      • These scenarios include heat tracing receptacles, lighting, pumps, valves, motors, etc.

    Stainless steel panelboards are the perfect solution in damp areas or corrosive situations.

    Why Choose A Spike Electric Stainless Steel Panelboard

    At Spike Electric, we pride ourselves in:

    1. Quick delivery times
    2. High quality products
    3. High-quality customer service

    Simply put, you get:

    • Two-Week Turnarounds (or faster) on Most Orders
    • High Quality Manufacturing
    • High Quality Customer Service
    • A Manufacturing Partner for Years to Come

    How does that translate into value for you?

    We are glad you asked! Working with Spike Electric Controls means:

    • Reduced Downtime
    • Less Overtime
    • More Efficient Operations

    "We provide our customers with the quickest delivery of the highest quality manufactured electrical gear."

    Cole Attaway

    CEO, Spike Electric Controls

    "Spike solutions result in reduced unplanned downtime, less overtime, and greater operational efficiencies."
    Robert Hodson

    President, Spike Electric Controls

    The highest quality at the quickest speed.

    Spike can deliver the same name-brand electrical gear in a fraction of the time.

    Standard Materials & Finishes

    • SS316 quarter
    • Stainless steel hardware – Stainless Steel Enclosed Panelboard- Type 4X, 12 &13
    • Industrial dead-front cover.
    • Eaton Cutler-Hammer™ circuit breakers.
    • Eaton Pow-R-Line™ chassis.
    • High integrity foam-in-place gasket.
    • Painted sheet steel or 316L stainless steel.
    • S4XPBH External Breaker Handles – are aluminum handles with stainless steel bushings and shafts. (Factory can be consulted for stainless steel handle option). Gaskets, sealing nuts and v-ring seals, are provided for a water tight seal. Spring loaded handles ensure that the door can be closed regardless of the breaker toggle position. EPD /GFI handles include external test capabilities are colored green.
    • Padlocking is available for each individual breaker in the “on” or “off” position with the lockplate.
    • “Main” Nameplate included with Back Fed Main Breaker Assemblies
    • Breaker amperages, the circuit number and breaker position is identified with individual operating labels off, on, tripped).
    • Padlocking is available for each individual breaker in the “on” or “off” position with the lockplate

    Certifications & Compliances

    • NEMA PB1
    • NEMA 1, 3, 3R, 4, 4X, 12
    • UL489/CAN/CSA C22.2, No. 5 circuit breakers
    • UL508A Listed / cUL Certified (CAN/ CSA C22.2, No. 14) (UL File E246968)
    • UL67 components

    Panel Capacity

    • With Main Breaker
    • 120/208V (3P 4W)
    • 120/240V (1P 3W)
    • 277/480V (3P 4W)*
    • 347/600V (3P 4W) CSA ONLY
    • 480V (3P 3W)
    • 277/480V (3P 4W)
    • 600V (3P 3W)
    • 347/600 (3P 4W)
    • Panel Size with Main Lug 2-Pole 3-Pole

    Main Capacity

    • With Main Breaker
    • 120/208V (3P 4W)
    • 120/240V (1P 3W)
    • 277/480V (3P 4W)*
    • 347/600V (3P 4W) CSA ONLY
    • 480V (3P 3W)
    • 277/480V (3P 4W)
    • 600V (3P 3W)
    • 347/600 (3P 4W)
    • Panel Size with Main Lug 2-Pole 3-Pole
