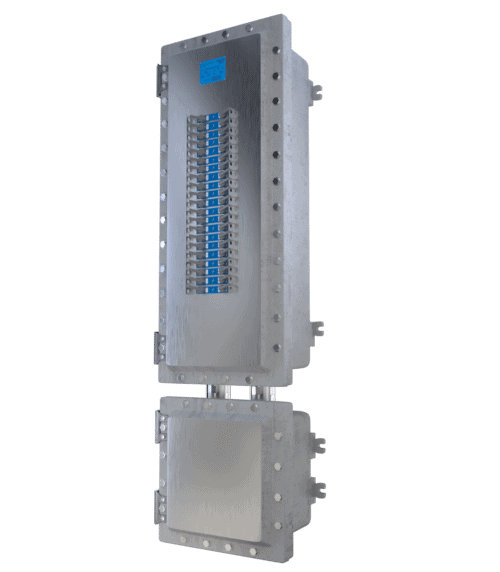

Eaton Crouse-Hinds SN7PP / SN7SPP Panelboards
Eaton Crouse-Hinds SN7PP:
Non-factory-sealed panelboards are a cost effective solution with maximum circuit flexibility. Without the terminal housing and factory wiring, the SN7PP series reduces material cost but requires field wiring to the circuit breakers.
Eaton Crouse-Hinds SN7SPP:
Factory-sealed panelboards provide a flexible, labor cost saving solution for the field. Panels can be pre-wired to max capacity in order to safely add additional circuits in the field while holding the factory-sealed integrity.
- In hazard locations where flammable gases, vapors, and combustible dust is present.
- In areas where weather, dampness and corrosion is present
- For branch protection to motors, starters, pumps, lighting, heat tracing etc.
- For indoor/outdoor use in refineries and chemical plants where hazards exist.
• Breather/Drain
• Cast aluminum terminal housing(SN7SPB)
• Inverted Orientation
• Wire for max circuit (SN7SPB)
• Cast aluminum terminal housing(SN7SPB)
• Inverted Orientation
• Wire for max circuit (SN7SPB)
• NEC/CEC:
• Class I, Division 1 & 2, Groups B,C D
• Class II, Division 1, Groups E,F,G
• Class II, Division 2, Groups F,G
• Class III
• Class I, Division 1 & 2, Groups B,C D
• Class II, Division 1, Groups E,F,G
• Class II, Division 2, Groups F,G
• Class III
Electrical Rating Range:
• Breather/Drain
• Cast aluminum terminal housing (SN7SPB)
• Inverted Orientation
• Wire for max circuit (SN7SPB)
• Breather/Drain
• Cast aluminum terminal housing (SN7SPB)
• Inverted Orientation
• Wire for max circuit (SN7SPB)
- Panel board enclosure–copper-free aluminum
- Terminal housing–316 stainless steel
- External operating handles–copper- free aluminum. Operating shafts, washers, breather/drain-stainless steel
- Panel board bus–copper
- Neutral and ground–tin plated aluminum
The Only Certified Assembly Partner in the USA & Canada
Spike is strictly audited and certified by Eaton yearly to ensure they follow all quality and safety standards.
By choosing Spike Electric Controls, you're choosing a partner with a unique position in the industry—a partner verified and backed by Eaton Crouse-Hinds.
Our team's specialized training, certification, and local presence ensure you receive:
- Unmatched Service & Support
- Quick & Efficient Logistics: for immediate stock availability.
- Custom Assembly: of ATEX and IECEx-certified products to your exact specifications.
- Assurance of Adherence: to the highest quality standards set by Eaton Crouse-Hinds.
- Annual Audits: confirming our alignment with Hazardous Location Standards.
- Compliance: with the ISO 9001 Quality Management System, meeting Eaton's rigorous standards.
- Expertise: from in-house specialized hazardous location engineers.
- Exclusive In-house Hazardous Location Drilling & Tapping: guaranteeing certified, high-quality processes.
