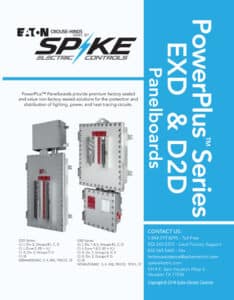

PowerPlus Series EXD [Div. 1 & 2] D2D [Div.2] Panelboards

PowerPlus™ Series Panelboards provide both premium factory sealed and value non-factory-sealed solutions for the protection and distribution of lighting, power, and heat tracing circuits. This panel solution is designed, engineered, and manufactured to be the industry’s safest and most dependable panelboard for hazardous area locations.

  • Premium Solution: PowerPlus factory- sealed panelboards are premium panelboards that provide maximum circuit flexibility with labor savings during installation, operation, and maintenance, and are accommodating for future changes in the field (order with either “S” or “A” in base part number). Panels are pre-wired to maximum circuit capacity, allowing for easy and safe replacement or installation of components in the field, while maintaining factory-sealed integrity.
  • Value Solution: PowerPlus non-factory-sealed panelboards are value panelboards that offer maximum circuit flexibility and many of the same features and benefits of the PowerPlus premium line. This value solution is provided without terminal housing and factory wiring of circuits (order with “N” in base part number). The non-factory-sealed solution reduces initial panelboard material costs and requires field wiring to circuit breakers and external seals to be field-installed during installation.

EXD and D2D PowerPlus™ panelboards are used:

  • In areas made hazardous by the continuous or abnormal presence of flammable gases, vapors, and combustible dusts
  • In areas subject to weather, dampness, and corrosion
  • For branch power distribution and circuit protection to motors, valves, pumps, lighting, heat tracing, receptacles, etc.
  • For indoor and outdoor applications in petroleum refineries, chemical and petrochemical plants, and other process industry facilities where similar hazards exist
  • To accommodate up to 100 amp branch loads (only 3 circuits), balance is up to 50 amps

Featuring an optimized design and fast leadtimes for OEMs, ECP enclosures are available in 40 standard sizes with optional conduit and device drilling and tapping.

Certifications
NEC, CEC and CSA:

  • Class I, Division 1 & 2, Groups B, C, D
  • Class II, Division 1 & 2, Groups E, F, G
  • Class III • UL Standard 1203
  • cUL to CSA C22.2 No. 30, No. 25
  • NEMA Type 3, 3R, 4, 7BCD, 9EFG
  • Enclosure Type 4X (requires selecting 4X option)

IECEx:

  • Ex db IIB+H2 Gb
  • Ex tb III C Db IP66
  • -20°C ≤ Ta ≤ +60°C
  • IECEx ETL 13.0022U

ATEX:

  • II 2 G D Ex db IIB+H2 Gb
  • Ex tb IIIC Db IP66
  • -20°C ≤ Ta ≤ +60°C
  • ITS13ATEX17813U certified

Standard Materials: Body and cover: copper-free aluminum; gasket: neoprene; cover bolts: steel; hinges: aluminum

Options (add to end of catalog number):

  • ATEX – ATEX certified
  • PLT – Flat aluminum plate cover
  • MP – Aluminum mounting plate installed
  • S391 – NEMA 4X certification with stainless steel cover bolts and hinges
  • S598 – Factory supplied hinges on left side
  • S598B – Factory supplied hinges on top side
  • S598C – Factory supplied hinges on right side
  • S598D – Factory supplied hinges on bottom side
  • S752 – Epoxy powder coat finish on exterior only
  • S753 – Epoxy powder coat finish on interior and exterior
  • S756V – Breather and drain
  • 4X – Type 4X certification, with stainless steel cover bolts, hinges, and external epoxy powder coat

EXD Series:

NEC/CEC:
Class I, Division 1 & 2, Groups B†, C, D
Class I, Zone 1 & 2, IIB + H2†
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
• NEMA/EEMAC: 3, 4, 4X‡, 7B†CD, 9EFG, 12
• CSA Enc. 3, 4, 5
• UL Standard: 67, 1203
• cUL (to CSA Standard C22.2 Nos. 29 & 30)
• IP65

D2D Series (Division 2):

• NEC/CEC:
Class I, Division 2, Groups B†, C, D
Class I, Zone 2, IIB + H2†
Class II, Division 2, Groups F, G
Class III
• NEMA/EEMAC: 3, 4, 4X‡, 7B†CD, 12
• CSA Enc. 3, 4, 5
• UL Standard: 67, 1203
• UL (to CSA Standard C22.2 Nos. 29 & 30)
• IP65

  • Circuit breaker enclosure body and cover – copper-free aluminum
  • Terminal housing – type 316L stainless steel (“S”) or copper-free aluminum (“A”)
  • Gasket – neoprene (cast aluminum enclosure); foam-in-place (stainless steel enclosure)
  • Operating handles – copper-free aluminum
  • Operating shafts and bushings, cover bolts, washers, hinges, breather/drain, retractile springs – stainless steel
  • Circuit breaker operators – EXD/D2D Size F: copper-free aluminum; all other types: non-metallic
  • Lifting bracket – electro galvanized cold rolled steel
  • Chassis – silver-plated copper
  • Breather cap – Delrin® non-metallic material
  • Neutral and ground bar – tin-plated aluminum

†Group B and IIB + H2 is standard on all PowerPlus panels, but requires special brackets to be installed on breakers to ensure long-term operability of circuit breakers. To order with brackets installed at factory, add suffix -GB. For field installable kit, order EXD-GB-KIT for Sizes B, C, and D separately. ‡NEMA 4X rating is available when ordered with suffix S752 or S753. Delrin® is a registered trademark of DuPont.
