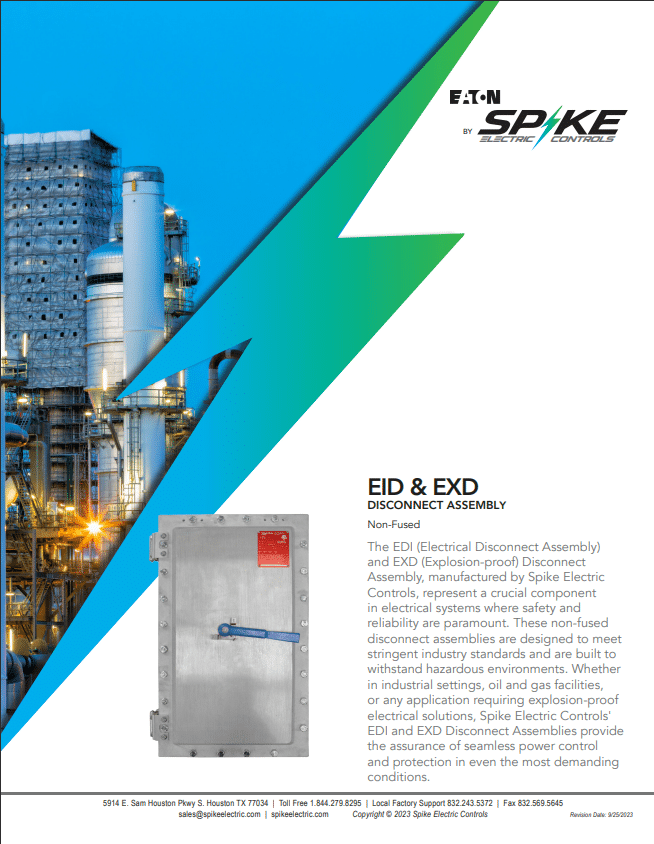

EID and EXD Disconnect Assembly

Applications:

  • Provides an explosionproof disconnect switch assembly for hazardous area electrical systems
  • Incorporates Eaton’s Crouse-Hinds’ high integrity manufacturing standards for reliability and safety in a compact, space- efficient NEMA 4* enclosure

Features and Benefits:

  • Can be ordered as enclosure only, allowing for field installation of switch while maintaining product certification
  • NEMA 4X breather and drain** provides a moisture control solution in hose-down applications
  • Small, compact footprint – less mounting space required
  • Large red painted aluminum rotary handle operator mounted on cover assembly provides rugged, reliable performance in the field and allows for the position of the switch to be easily identified from a distance
  • Neoprene cover gasket provides NEMA 4 (hosetight) environmental rating
  • Detachable/adjustable mounting feet provide flexible mounting alternatives for ease of installation; no need to replace the entire enclosure if a mounting foot is broken easy internal access for wiring and maintenance
  • Top and bottom conduit entries standard for easy feed of conductors
  • (2) 1/2” NPT conduit entries, one on top and one on bottom, for field addition of breather and/or drain or for use with auxiliary contacts; †holes come plugged with Eaton’s Crouse-Hinds PLG explosionproof as standard
  • Provides lockout/tagout capability which complies with OSHA requirements, allowing for locking in the ON or OFF position for standard maintenance checks
  • Complies with NEC Article 312 wire bending requirements for max gauge wire, allowing for easy and safe installation, and reliable operation of product

Certifications & Compliances:

  • NEC/CEC
  • Class I, Division 1 & 2, Groups B, C, D
  • Class II, Division 1 & 2, Groups E, F, G
  • Class III
  • NEMA 3, 3R, 4 or 4X*, 7BCD, 9EFG
  • UL Standard 1203
  • cUL to CSA C22.2 No. 30

Standard Materials:

  • Copper-free Aluminum – Natural
  • Steel – Electro-galvanized
