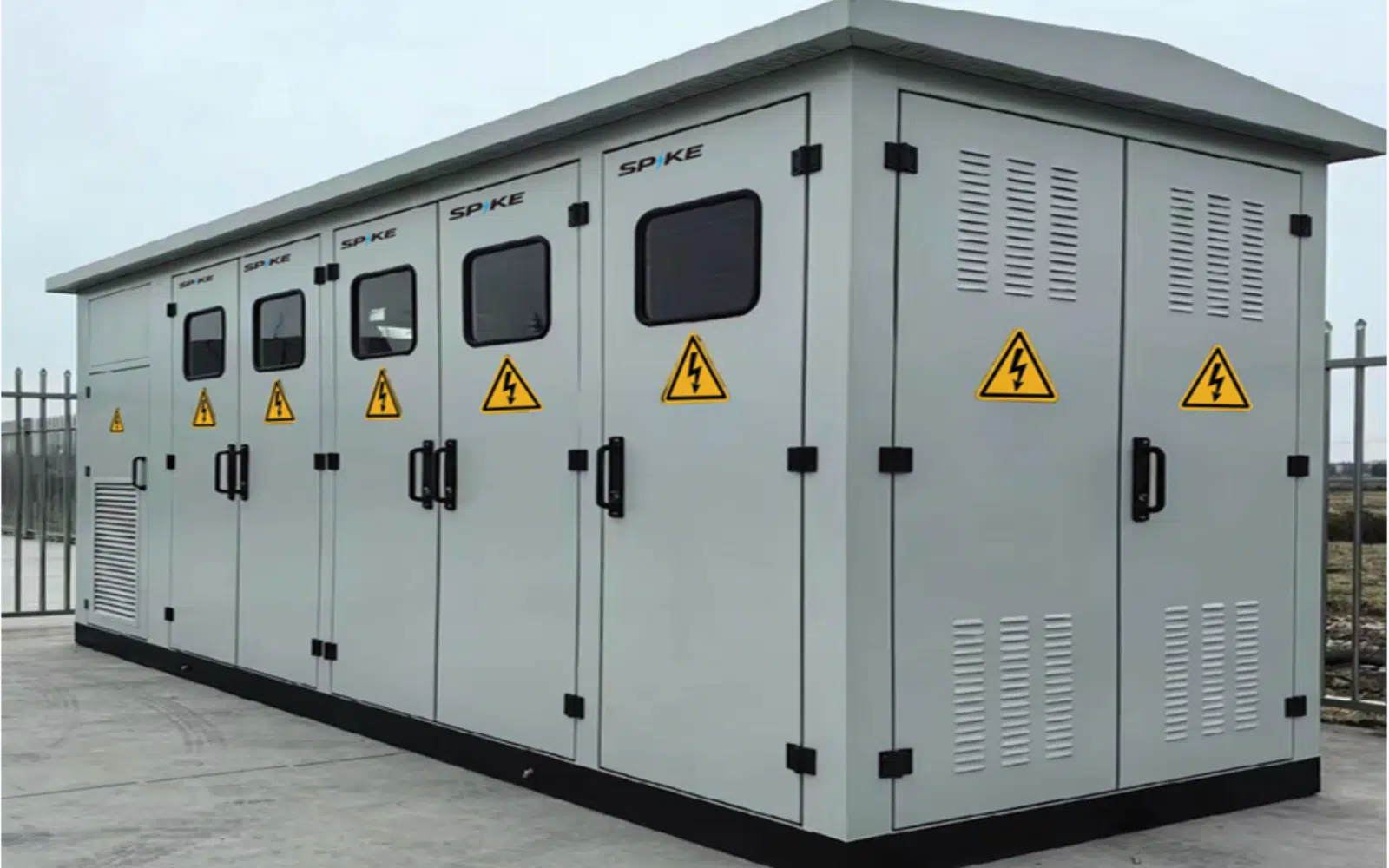

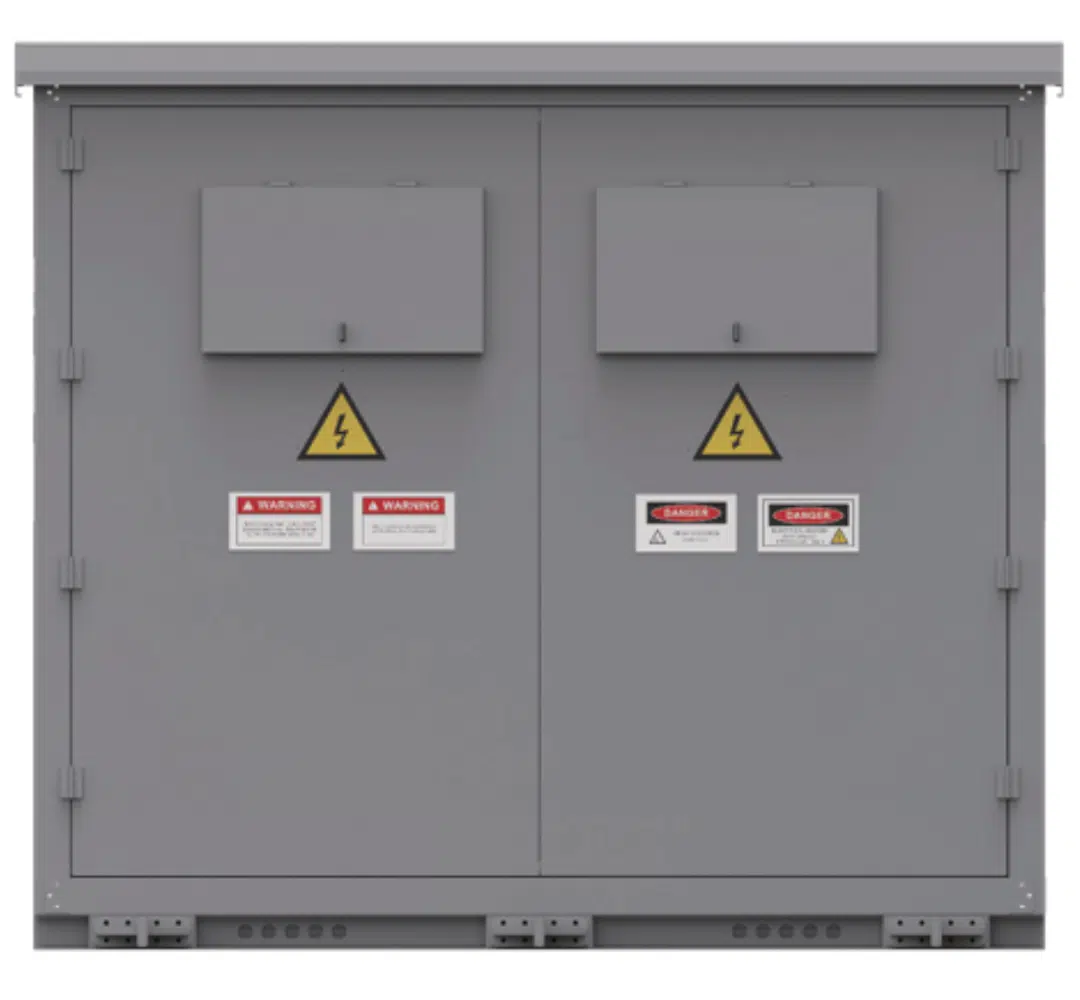

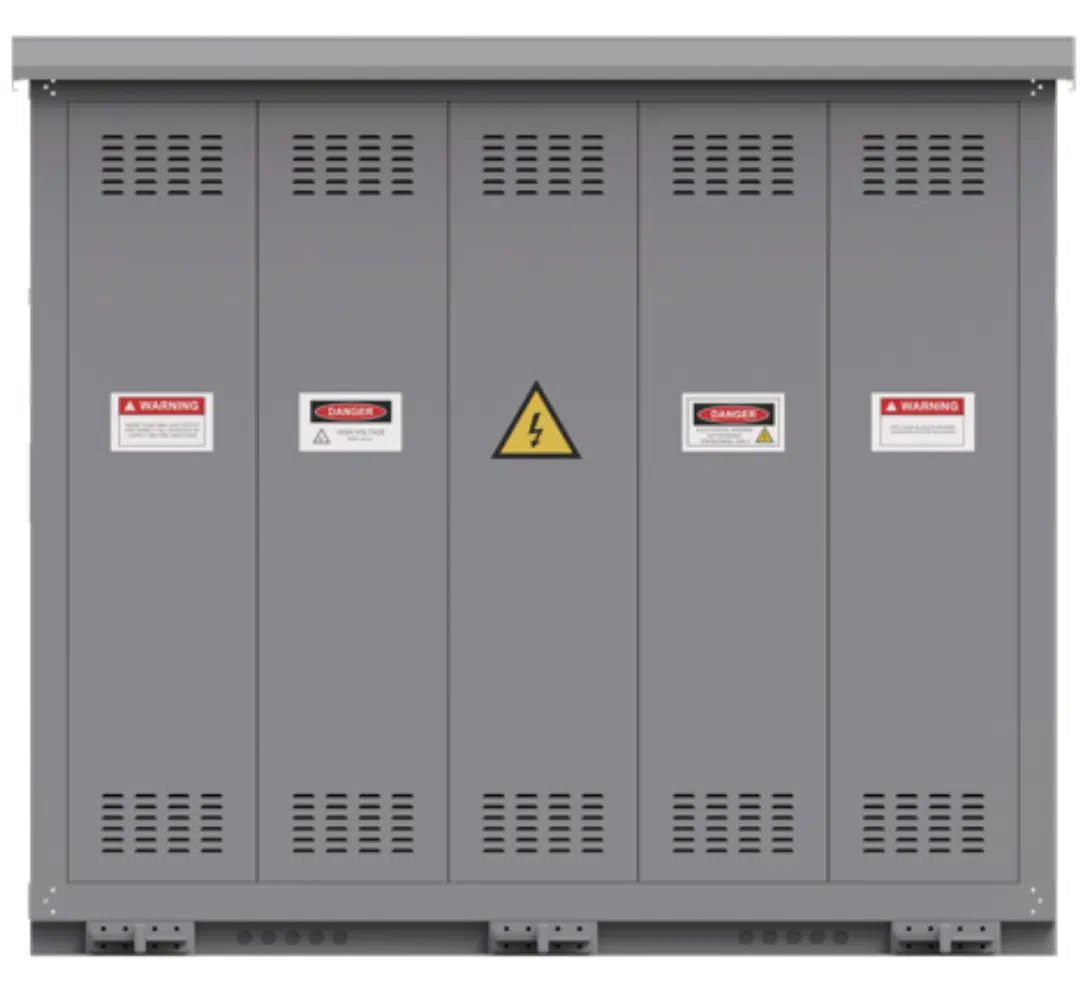

Gas-Insulated Medium Voltage Switchgear
Spike Electric Controls has partnered with Spike Electric as a Value Add Partner, blending Spike Electric's cutting-edge technology with our expertise in electrical solutions to elevate industry standards.*Personnel installing, operating, or maintaining this equipment must have thorough knowledge of all applicable local, regional, industrial, governmental, and OSHA safety procedures as well as commonly accepted safe working practices. Personnel working in, or around this equipment must also exhibit common sense and good judgement regarding the potential hazards for themselves and other personnel in the area. These instructions are intended for use by fully qualified personnel and are not a substitute for adequate training, experience, and supervision. Should clarification or additional information be required, refer the matter to your ABB sales office. When communicating with ABB regarding the product covered by this Instruction book, always reference the ABB assigned Shop Order (S.O.) number or Serial Number.
Product, Safety & Specifications
-
-
- SF6 gas-insulated with hermetically sealed pressure systems
- Rated voltages up to 38 kV
- Up to 3000 A and 40 kA
- Single busbar and double busbar design
- Up to 5000 A in single busbar design
- Stainless steel enclosures, fabricated from laser
cut sheet steel - Modular structure
- Switchgear with a leakage rate of less than
0.1 % per year - Integral routine leakage testing of the panels
ex-works - Indoor installation
- Panel widths 23.62 in, 31.50 in and 33.1 in
-
Wear appropriate work clothes and protective gloves during the installation work to avoid injuries particularly at sharp-edged sheet metal parts of the switchgear.
The operator of the switchgear must prevent access by personnel to non-arc classified areas, for instance by issuing instructions.
Within the ratings stated on the type plate, the switchgear is safe for operating personnel in accordance with IEC 62271-200 when all system components are completely and properly installed.
Commissioning, servicing and extension work require special attention with regard to safety (see also IEC 62271-200).
Operator safety in accordance with IEC 62271-200 assumes that the conditions stipulated by us are complied with (see also Technical Catalogue TK 636).
With pressure relief into the switchgear room, the IAC qualification requires a switchgear installation consisting of at least four panels. If a plenum leading to the outside is used, at least two panels are required for the IAC qualification. With a pressure relief into the switchgearroom to the top, at least two panels with a width of 31.5 in are required for the IAC qualification.
Use only chlorine-free cleansers for cleaning of the switchgear
