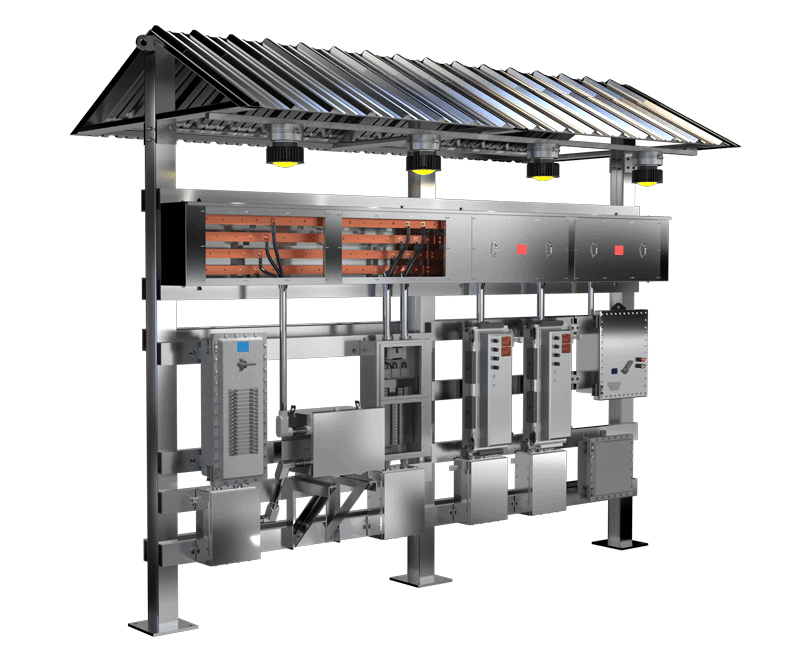

Electrical Switch Racks

  • Free-Standing Switch Rack Assemblies Are Used:To provide a complete motor control center in one integrated package
  • Outdoors and indoors
  • In damp, wet or corrosive locations such as sewage treatment plants, lumber mills, marine installations, and food preparation areas
  • In areas made hazardous due to the presence of flammable vapors or gases, such as petroleum refineries, chemical and petrochemical plants, gas gathering plants, pipeline compressor stations, and drilling rigs, both onshore and offshore
  • In areas where hazardous dusts are present, such as coal handling facilities, grain processing and handling plants, and certain food process industries
  • Complete factory assembled and wired switch racks
  • Pre-drilled bus boxes allow for quick and easy changing or adding of components
  • Complete assembly covered under one order, eliminating engineering costs, additional costs of placing separate orders with several vendors for various components, and assembly and scheduling problems at job site
  • Wiring is simple. After switch rack is in place, feeders are connected to the main bus and connections made from starters motors. No other field wiring is necessary
  • Maintenance time and costs are reduced by having controls grouped. Work is performed in one location instead of moving from one control to another in various locations
  • Major components are standard EBMX, EBM , SN4, SN4X, SN4XEBPB, SN7, EXCP, D2PB, EXD, D2D, EPL, and D2L enclosures featuring ready access to starters and breakers for inspection and maintenance
  • Custom built racks to meet your exact requirements are an Spike Electric Controls specialty. Complete quotations will be supplied for any job, large or small.

Standard Finishes:

  • Rack frame – hot dip galvanized steel, stainless steel, or natural aluminum
  • Components – see sections A & C for finishes

Standard Materials:

  • Rack frames – channel members, bolted and welded

Certifications and Compliances:

• NEC:
Class I, Divisions 1 & 2, Groups C,
D (Group B optional)
Class II, Division 1, Groups E, F,
G Class II, Division 2, Groups F, G
Class III
• NEMA: 3, 4X (optional), 7B (optional) CD, 9EFG, 12

Options:

  • Rack frame finish – corrosion resistant primer with air dry epoxy
  • Options listed for individual components can be incorporated in complete switch racks
